Fans for Heavy-Duty Industrial Air and Material Handling
General Duty Centrifugal Fan
for Air Conditioning Systems
ACE Design AL range of centrifugal fans incorporates an aerodynamically stable fan housing which is compatible with both Airfoil and Laminar type of rotors.
The housing is manufactured from heavy gauge mild steel plate, suitably braced and stiffened to provide a vibration and resonance-free unit. The fan housing is complete with steel inlet cone to ensure efficient turbulence-free flow of air to the rotor. Long life bearings and substantial shaft are fitted for each rotor type.
Design AL series is available in eight different arrangements and all handlings. Special units may also be constructed to client's specific requirements. This range may be manufactured from special materials or coatings. Also available are a range of accessories such as inlet vane control, discharge dampers, drains, wire mech screens, bases and vibration isolator.
Design AL
Airfoil
Airfoil
Airfoil
Design AL Airfoil type rotor is manufactured with 12 double surface die-formed airfoil-section blades, welded to back plate and die-spun conical front plate. This type of blading and front plate, together with the compatible scroll design of the housing, allows for minimum turbulence of air passing through the fan, and enables static efficiencies of 86% to be achieved. This type of rotor provides for non-overload characteristics and stable performance.
Laminar
Airfoil
Airfoil
Design AL Laminar rotor consists of 12 flat, backward inclined blades suitably welded to a back plate and die-spun front plate. This rotor runs slower than a conventional airfoil type, but is less efficient in operation. Static efficiencies of 80% are possible with this fan. This rotor is also non-overloading in power characteristics
Industrial Centrifugal Fan
for Air & Material Handling

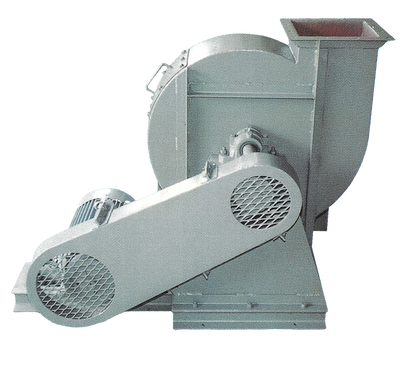

ACE Industrial range of centrifugal fans incorporates a common fan housing with five interchangeable rotor styles for different air and material handling applications. This fan case is built to heavy duty specifications as standard, allowing for duties up to Class 4.
Design IMH
The Design IMH is available in 8 arrangements and all positions of discharge and rotation. Special configurations can be designed and built to suit client's specification.
LF Rotor
LF Rotor
LF Rotor
This rotor is particularly suitable for handling long shavings as well as for conveying, and handling air or gases containing materials which have a tendency to build up. Ideal for heavy, sticky or abrasive dust handling duties.
This rotor has six radial blades welded to a fabricated steel spider - it is suitable for elevated temperatures up to 550°C and is available in both standard open rotor or with rings, depending on duty.
AM Rotor
LF Rotor
LF Rotor
This rotor is high efficiency and is designed for handling air which clean or containing dry granular material, etc.
It is suitable for conveying all types of dry materials such as sawdust, wheat and wood chips.
This rotor has eight radial blades welded to a substantial back plate and a fully developed spun conical front plate. It is suitable for temperatures up to 450°C.
GH Rotor
LF Rotor
GH Rotor
This rotor is specially designed for handling air which is either clean or slightly contaminated with dry, dusty materials in light concentrations. It has the highest efficiency of all industrial range of rotors and consists of 10 flat, backward inclined blades welded to a substantial back plate and a fully developed conical front plate.
It is suitable for elevated temperatures up to 450°C and is available in standard or heavy-duty construction
High Pressure Blower
for High Pressure with Medium to Low Air Volume
Design PB
For high pressures with medium to low volumes, Design PB Blower offers the ultimate in strength and stability.
It is designed for use with oil or gas burners, furnaces, ovens, foundries, vacuum cleaning, air curtains, and any industrial application requiring air at high pressure. It is available in single or two-stage configurations and either belt or direct drive.
A full range of accessories are available for this design, such as intake filters, silencers, blast gates, inlet dampers, and line filters. It is available in all positions of discharge and rotation.
